General data
Operating temperature range: -25 ~ +60 °C
Relative operating humidity: 0 % RH~100 % RH
Operating altitude: 0 - 4,000 m (derating > 2.000 m)
Cooling: Natural convection
Display: LED displays; integrated WLAN + FusionSolar App
Communication: RS485; WLAN/ Ethernet via Smart Dongle-WLAN-FE (optional), 4G / 3G / 2G via Smart Dongle-4G (optional); EMMA (optional)
Weight (incl. mounting bracket): 14.5 kg
Dimensions (incl. mounting bracket): 425 x 376.5 x 150 mm
Protection class: IP66
Input DC
Recommended maximum PV power: 12,000 Wp
Max. input voltage: 600 V Input voltage: 600 V
Operating voltage range: 40 V ~ 560 V
Starting voltage: 50 V
Rated input voltage: 360 V
Max. Input current per MPPT: 16 A
Max. Short-circuit current: 20 A
Number of MPP trackers: 3
Max. Max. number of inputs per MPPT: 1
Output AC
Mains connection: Single-phase
Nominal power: 8,000 W
Maximum apparent power: 8,800 VA
Nominal output voltage: 220 Vac / 230 Vac / 240 Vac, L / N + PE
AC mains frequency: 50 Hz / 60 Hz
Adjustable power factor: 0.8 kap. ... 0.8 ind.
Total harmonic distortion (THD): ≤ 3%
Efficiency
Max. Efficiency: 98.1 %
European efficiency: 97.5 %
Protective devices
Anti-islanding protection: Yes
DC reverse polarity protection: Yes
Insulation monitoring: Yes
DC overvoltage protection: Yes, compatible with protection class TYPE II according to EN/IEC 61643-11
AC overvoltage protection: Yes, compatible with protection class TYPE II according to EN/IEC 61643-11
Residual current monitoring unit: Yes
AC overcurrent protection: Yes
AC short-circuit protection: Yes
AC overvoltage protection: Yes
Overheating protection: Yes
Arc fault protection: Yes
Battery charging from the mains: Yes
Backup power (Yes, via Smart Guard-63A-S0)
Module optimizer
SUN2000-450W-P2, SUN2000-600W-P
Standards and safety
EN/IEC 62109-1, EN/IEC 62109-2
Mains connection conditions
IEC61727, IEC62116, IEC61683, EN50530, ABNT NBR 16149/16150, MEA/PEA, G99, IRR-DCC-MV/ IRR-TIC, Philippine Grid Code Resolution No. 07, NRS 097-2-1, EN50549-1, VDE4105, UTE15-712-1/VFR 2019, UNE217002, NTS631, RD244 (UNE217001), PPDS, ROGA, TOR Erzeuger, CEI 0-21:2020-12 V1, C10/C11.
Further information on conformity to standards is available on request.
included in the scope of delivery
PV Connector
AC Connector
Signal Cable Connector
Bracket
Videos
Hier können Sie Videos hinzufügen.
Versand & Zahlung
Schneller und sicherer Versand ganz Europaweit
Wir versenden Ihre Bestellungen zuverlässig mit unseren Premium-Partnern DHL, DPD und Schenker. So erreichen Ihre Pakete Sie im Handumdrehen – ob um die Ecke oder an die entlegenste Adresse Europas.
Zahlungsarten
Wählen Sie aus unseren sicheren und flexiblen Zahlungsoptionen:
Rechnung für Geschäftskunden (B2B) – Zahlung nach Freigabe Ihrer Bestellung
PayPal – schnell und einfach, ohne direkte Weitergabe Ihrer Kontodaten
Vorauskasse – Überweisen Sie den Betrag im Voraus, wir versenden nach Zahlungseingang
Kreditkarte (Visa, MasterCard, American Express) – sicher und sofort belastbar
Alle Zahlarten sind durch moderne Verschlüsselungstechnologien geschützt und garantieren Ihnen maximale Sicherheit und Komfort.

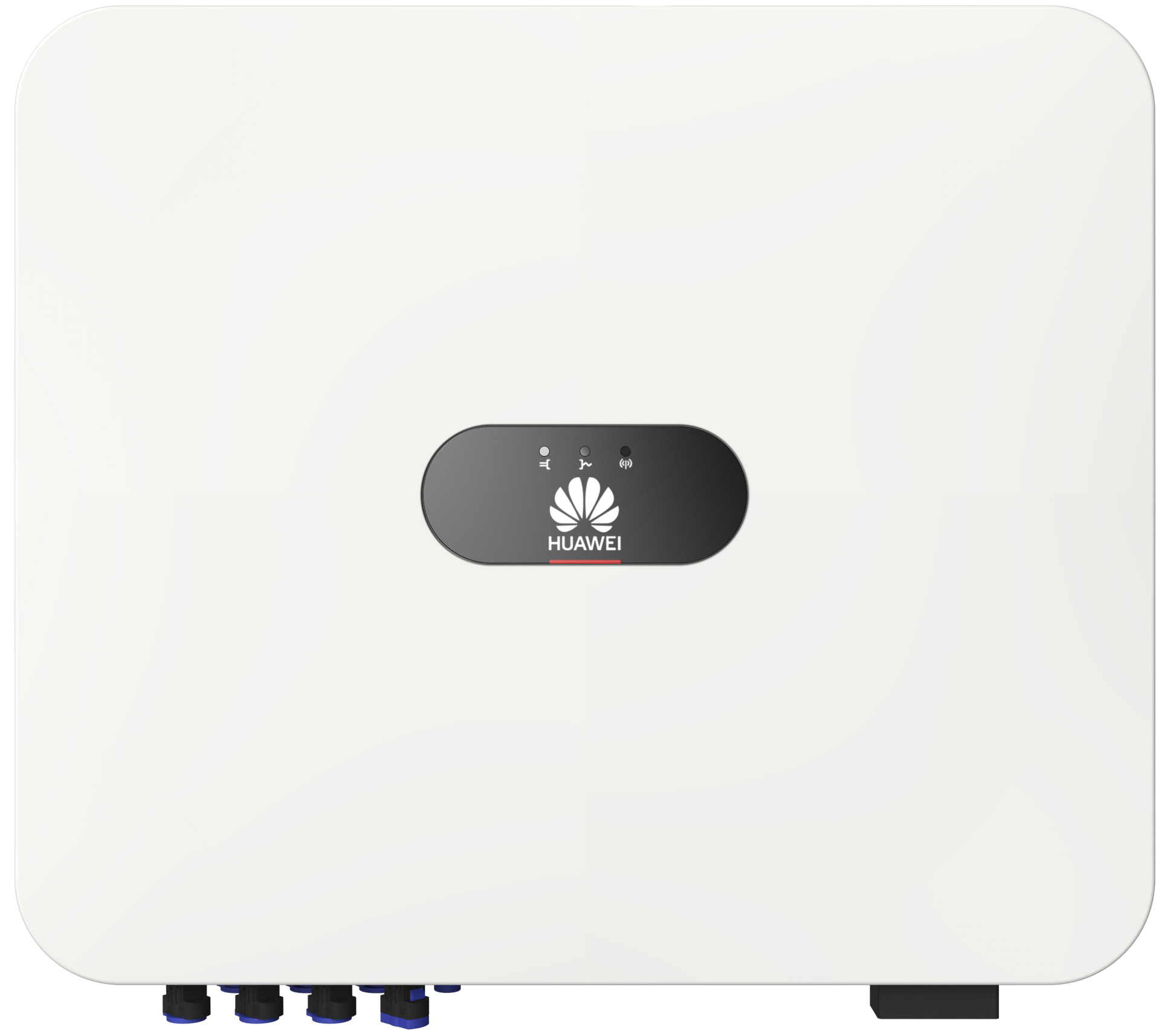

HUAWEI SUN2000-8K-LC0 Smart Energy Controller
