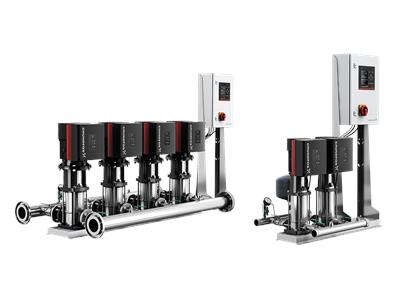

Hydro MPC-S 3 CRI 10-6

Pressure booster system supplied as compact assembly according to DIN standard 1988/T5.

The pumps are all mains-operated CR(I) pumps.

Hydro MPC-S maintains the pressure through cutting in/out the CR(I) pumps.
The system performance is adapted to the demand through cutting in/out the required number of CR(I) pumps and through parallel control of the pumps in operation.
Pump changeover is automatic and depends on load, time and fault.

The system consists of these parts:

vertical multistage centrifugal pumps, type CRI 10-6.
The pumps are mains-operated (start/stop).
Pump parts in contact with the pumped liquid are made of stainless steel EN DIN 1.4301.
Pump bases and heads are of either cast iron/stainless steel (CRI) or cast iron EN-GJS-500-7 (CR), depending on pump type; other vital parts are made of stainless steel EN DIN 1.4301.
The pumps are equipped with the service-friendly cartridge shaft seal HQQE (SiC/SiC/EPDM).
Two manifolds of stainless steel EN DIN 1.4571.
Base frame of stainless steel EN DIN 1.4301 up to CR 64. Above CR 64 the pumps are placed on a galvanized C-profile frame.
One non-return valve (POM) and two isolating valves for each pump.
Non-return valves are certified according to DVGW, isolating valves according to DIN and DVGW.
Adapter with isolating valve for connection of diaphragm tank.
Pressure gauge and pressure transmitter (analog output 4-20 mA).
Control MPC in a steel cabinet, IP 54, including main switch, all required fuses, motor protection, switching equipment and microprocessor-controlled CU 352.

Dry-running protection and diaphragm tank are available according to the list of accessories.

Pump operation is controlled by Control MPC with the following functions:

Mains-operated pumps(start/stop).
Constant Pressure – the system is able to maintain an almost constant pressure through cutting in/out the required number of pumps.
System overview – Nice system overview via pump animation and icons on color screen.
Dry-running protection – increase your system reliability and decrease maintenance costs.
Alarm & Warnings – real time alarms and warnings on the color display reduces downtime.
Alarm & Warnings logger – storage of up to 24 alarms and warnings makes fault analyzing easier.
Monitoring – the CU 352 holds several monitoring possibilities such as pressure level, pump outside duty range, this gives you great system insights.
Logged data – valuable insights available on the big color screen or exported to a PC for further analysis.
Protective functions – Several functions ensure reliable and safe operation and the result is longer lifetime.
Clock program – setpoint automatically reduced to the required value at any given time which means money saved on energy.
Redundancy – it is possible to assign one or more standby pumps, these will take over in case of failure.
Pump test run – prevents pumps from seizing up and liquid from decaying in the pumps and removes trapped air.
Emergency run – pumps keep running regardless of warnings and alarms.
Forced pump changeover – setting of pump changeover so the pumps run for the same number of operation hours.
Fall back sensor - If the Primary sensor fails, the system will automatically be regulating on the fallback sensor at a predefined setpoint, thereby you avoiding downtime in case of primary sensor fault.
Communication – Ethernet, PLC via IO 351, Modbus-Profibus-LON-GSM-GPRS via CIU modules.
Multi language - wide range of operating languages.

Pumps, piping, cabling complete as well as Control MPC are mounted on the base frame. The booster system has been preset and tested.

Fördermedium:		Wasser
Max. Betriebsdruck:		16 bar
Max. Förderstrom d. Anlage:		39 m³/h
Nennstrom der Anlage:		13.6 A
Motorbemessungsleistung:		2.2 kW

Membranbehälter, Komponenten zur Wassermangel- überwachung und alternative Bedieneinheiten können aus der Zubehörliste ausgewählt werden. Nettogewicht: 234 kg
